Infrastructure
Over the years, Pavithra Springs has earned a reputation for taking on custom and high precision jobs, as well as very high-volume production. In fact, we love a challenge, and encourage our customers to bring their complex spring requirements. When they do, we sit down with them to take an in-depth look at their needs. We examine their situation from every angle taking into consideration the ‘mating’ parts—those parts that are next to and interact with the spring. We go this far because when it comes to design, details count. Our design team and NPD team will work with you to ensure your products succeed. Because our customer’s success is our success.
Spring Forming Machines

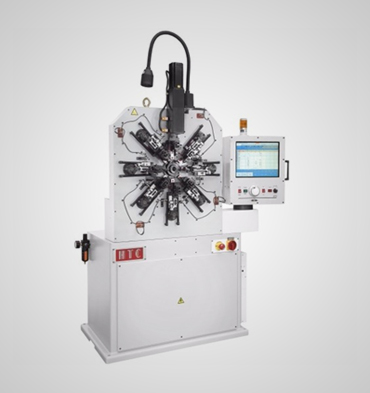

16s Forming Machine
Capacity (Wire Dia):
0.4mm – 1.6mm
20xr Forming Machine
Capacity (Wire Dia):
0.6mm – 2.00mm
35xr Forming Machine
Capacity (Wire Dia):
1.2mm – 3.5mm

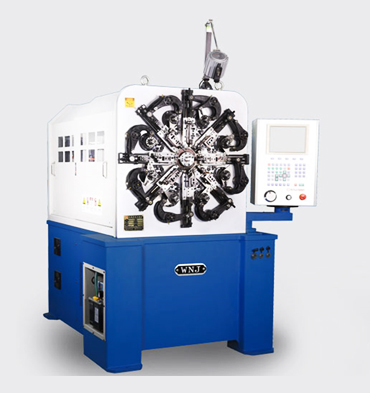

625z Forming Machine
Capacity (Wire Dia):
2.00 MM to 5.00 MM

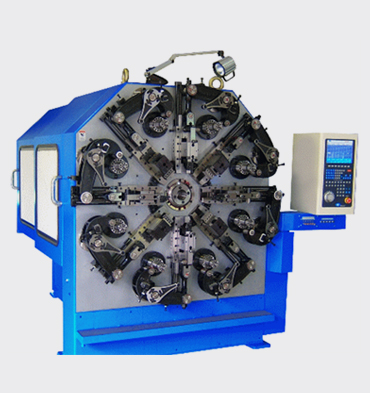

50T Forming Machine
Capacity (Wire Dia):
2.00 MM to 5.00 MM
Spring Coiling Machines

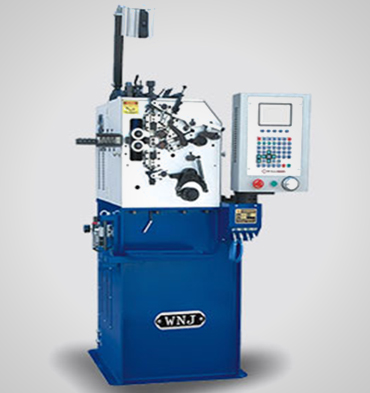

PSM-08 Coiling Machine
Capacity (Wire Dia):
0.2 MM to 0.80 MM

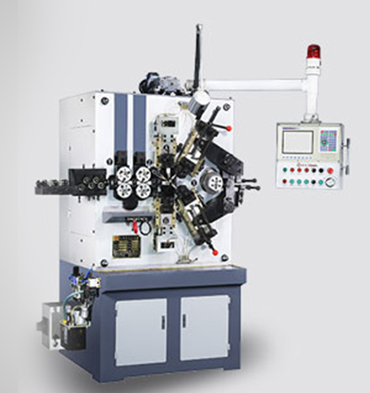

Ltd-14 Coiling Machine
Capacity (Wire Dia):
0.5 MM to 1.40 MM
CNC08a Coiling Machine
Capacity (Wire Dia):
0.5 MM to 1.50 MM

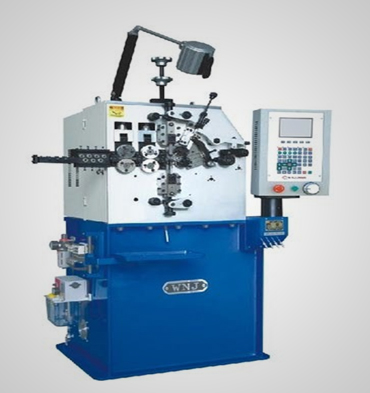

TK316 Coiling Machine
Capacity (Wire Dia):
0.3 MM to 1.60 MM
FM-30 Coiling Machine
Capacity (Wire Dia):
1.00 MM to 3.00 MM
LTD 65 Coiling Machine
Capacity (Wire Dia):
2.00 MM to 8.00 MM
Multi Slide Machines
YSM 10T Multi Slide
Capacity (Wire Dia):
0.1 - 1 mm
Capacity (Strip):
0.04 mm – 0.5 mm Thick
DS 15-220 Multi Slide
Capacity (Wire Dia):
2.5 mm
Capacity (Strip):
40mm width X 1.4mm Thickness

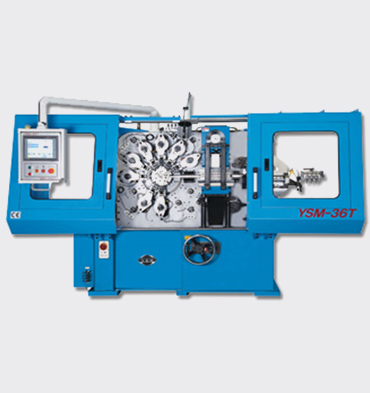

YSM 36T Multi Slide
Capacity (Wire Dia):
0.6 mm – 3.2 mm
Capacity (Strip):
0.3 mm – 1.5 mm Thick
YSM 39T Multi Slide
Capacity (Wire Dia):
1.5 mm – 6.5 mm
Capacity (Strip):
0.8 mm – 3 mm Thick
Press Machines

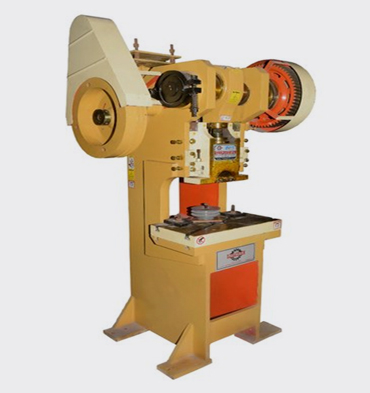

5 Ton power press
Capacity:

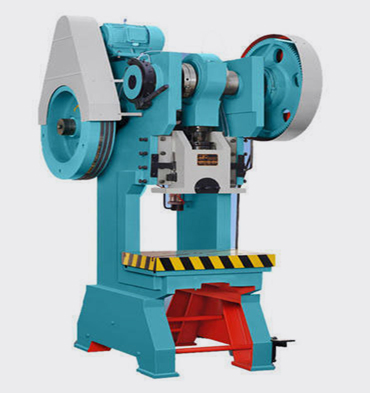

25 Ton power press
Capacity:

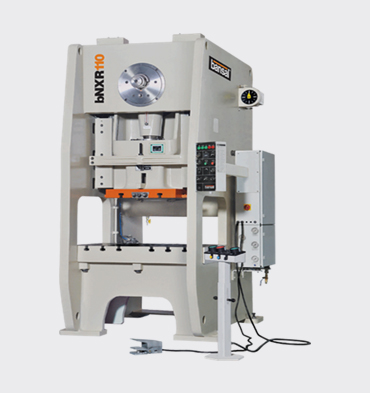

110 Ton power press
Capacity:
Measuring Equipment

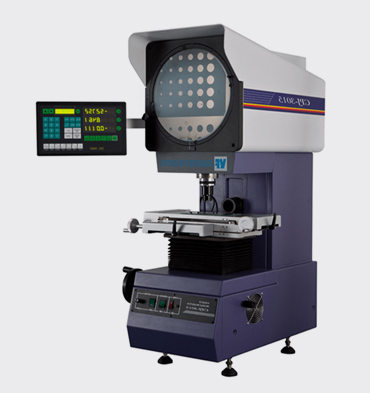

Profile Projector
Capacity:

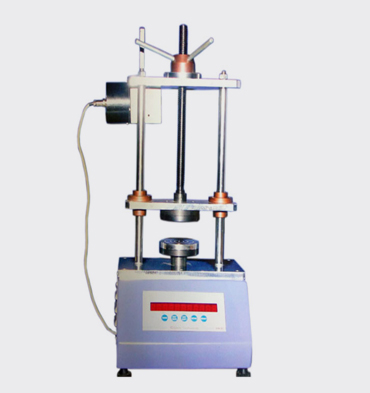

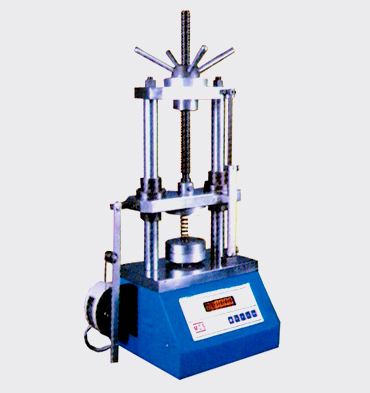

Load Testing
Capacity: 100 Kgs
Load Testing
Capacity: 50 Kgs
Load Testing
Capacity: 10 Kgs
Load Testing
Capacity: 5 Kgs
Load Testing
Capacity: 2 Kgs

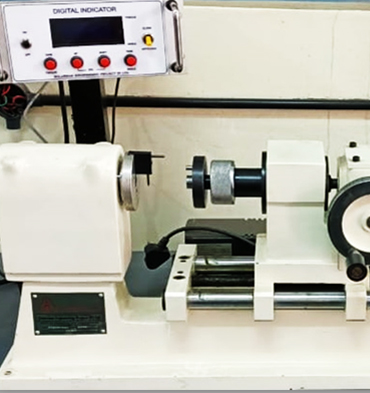

Torsion Load Testing
Capacity: 200 Kg. mm

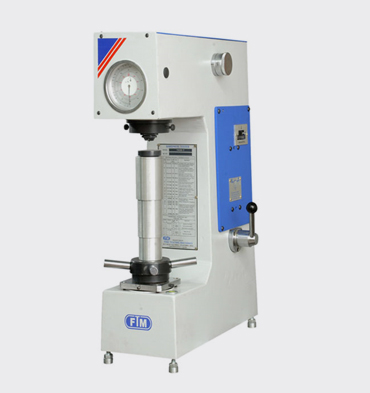

Hardness Testing Machine
For HRB, HRC, Testing of Strips and Wires.
Auto Sorting Machine
Capacity:
